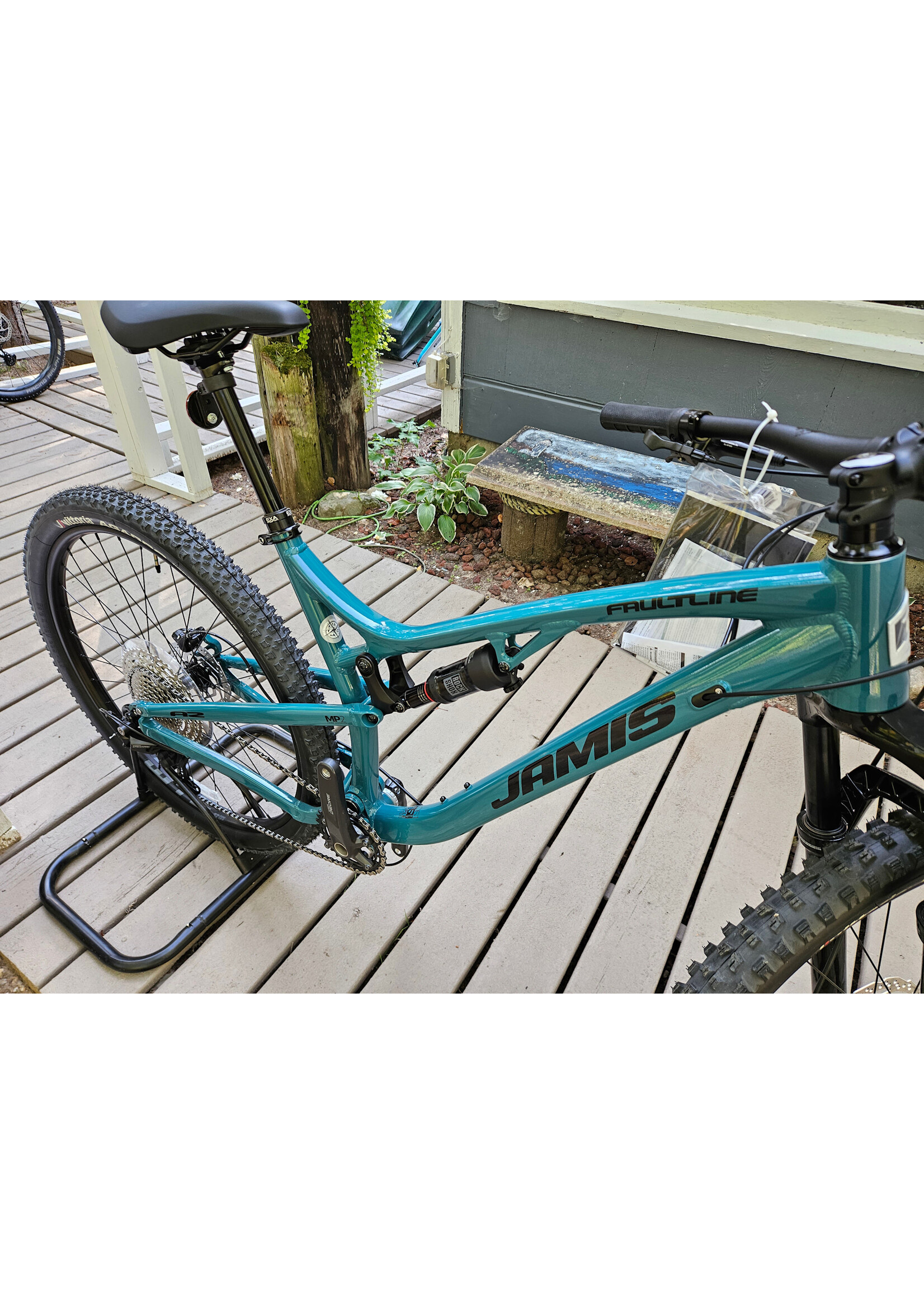

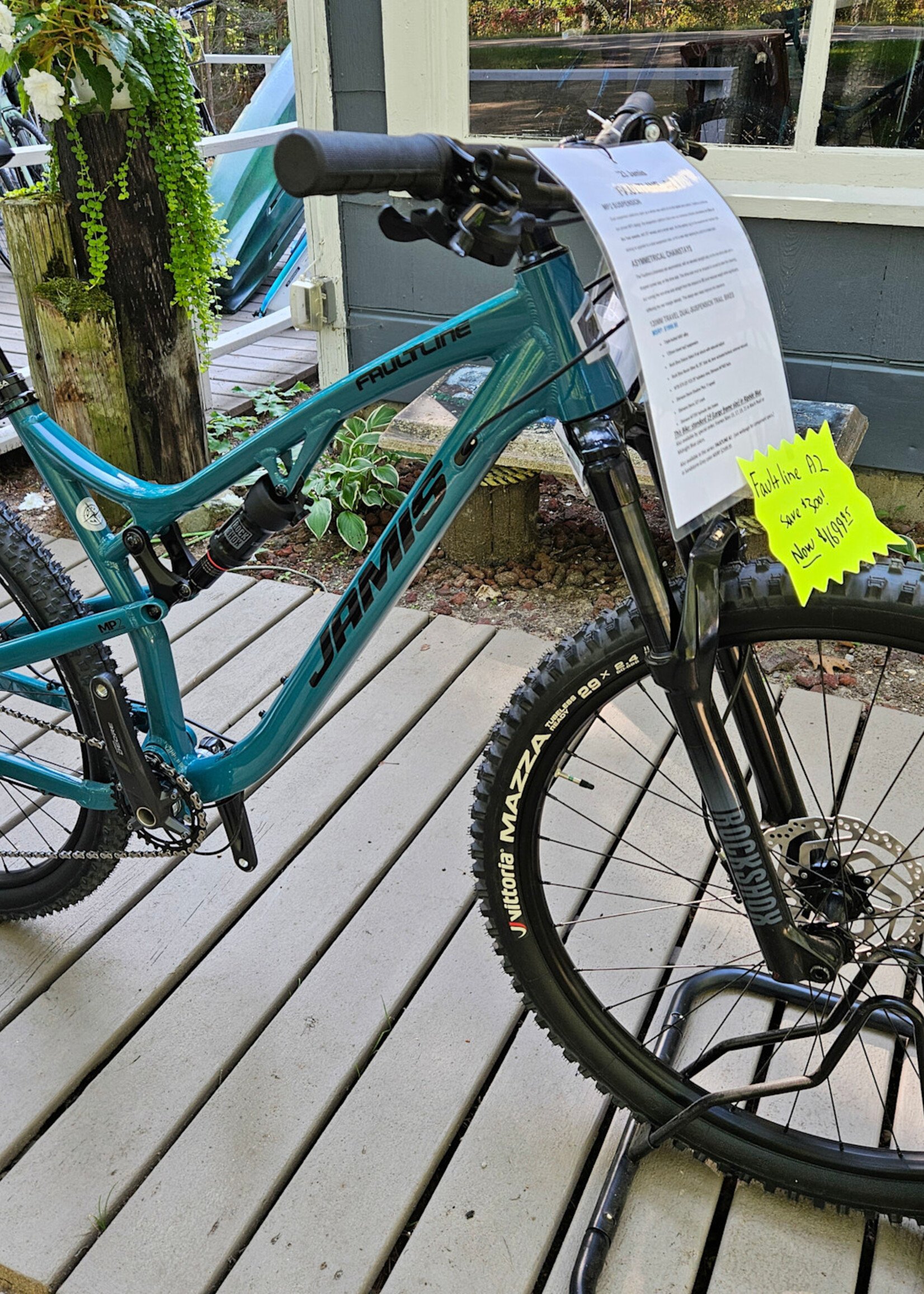

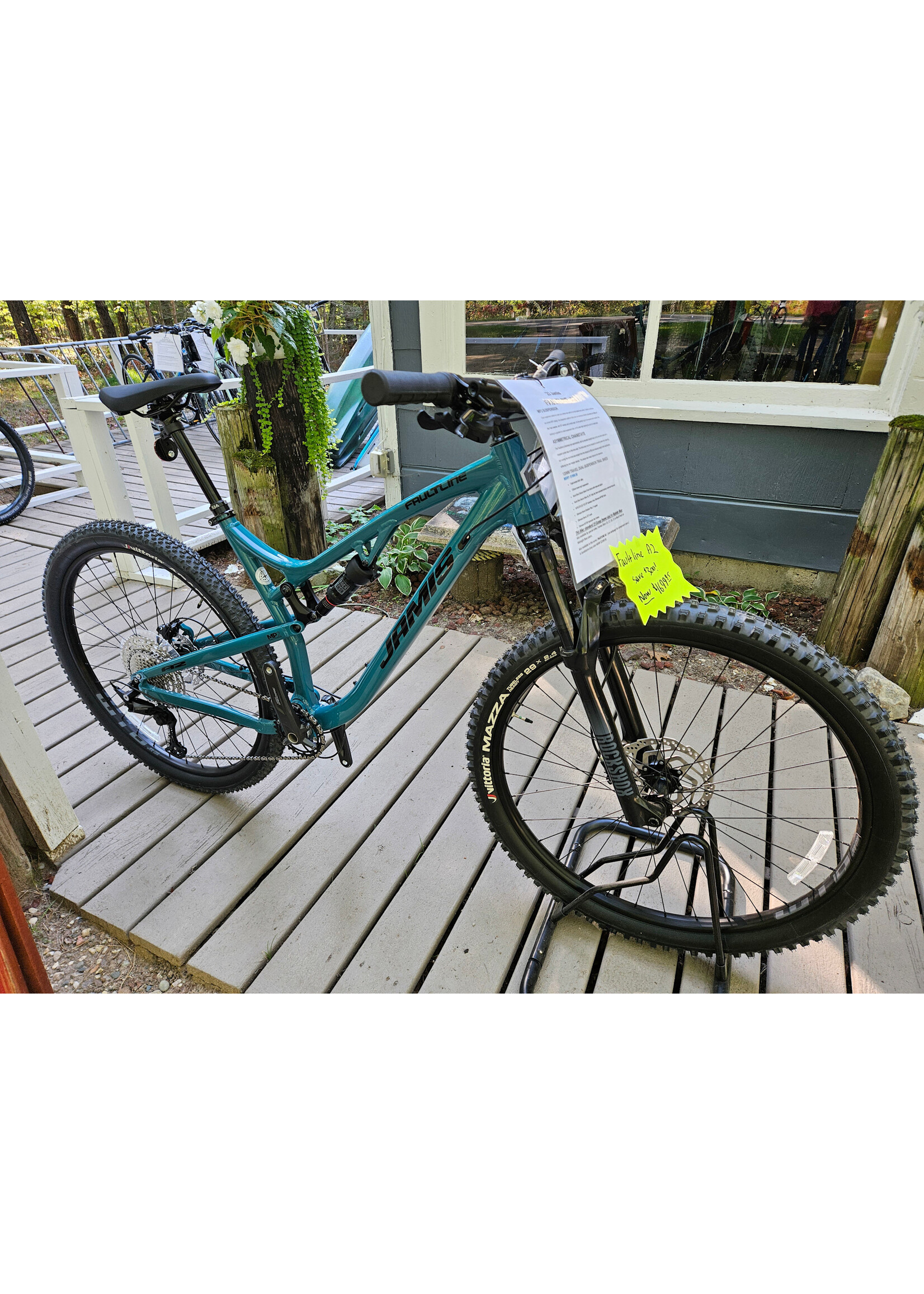

120MM TRAVEL DUAL SUSPENSION 29 TRAIL BIKES
Dual suspension platforms open up a whole new world of on-trail speed and control. Faultline combines our proven MP2 design, the suspension platform that’s won us numerous industry accolades and Bike of the Year awards, with 29″ wheels and a smart spec. It’s the perfect rig for the experienced hardtail rider looking to upgrade to a dual suspension bike, or for a new rider looking for a bit of a head start.

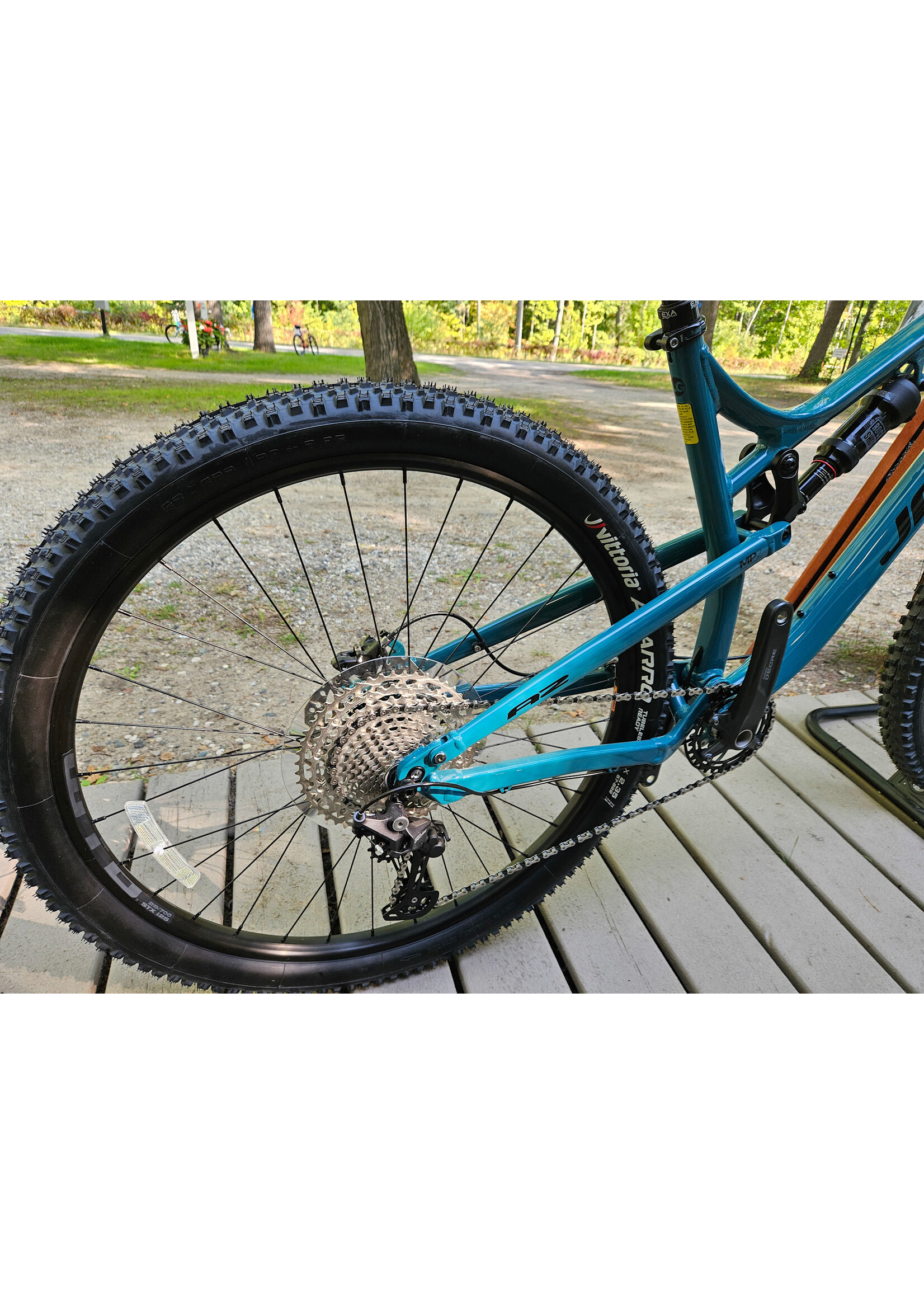

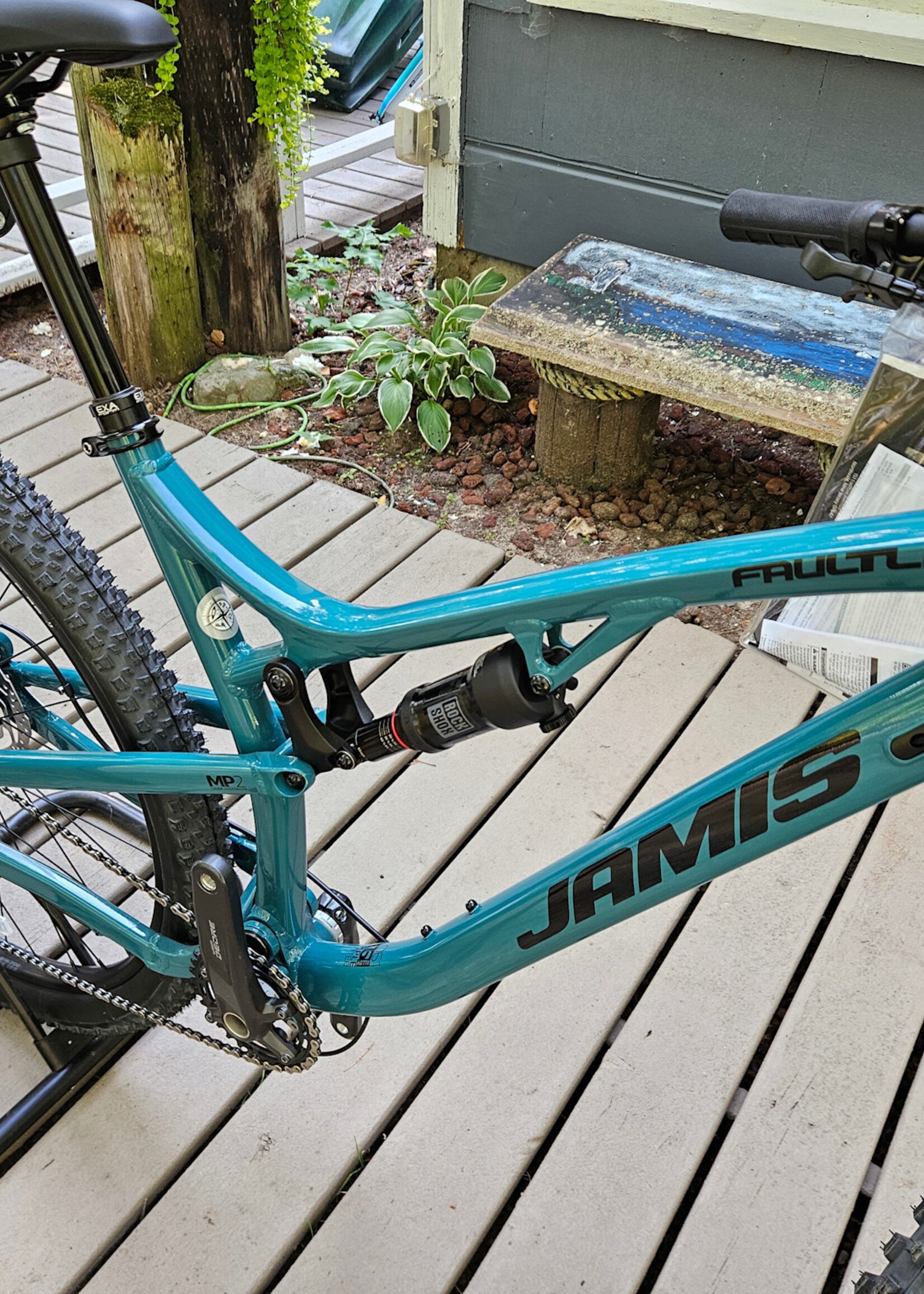

The Faultline’s chainstays are asymmetrical, with an elevated straight stay on the non-drive side and a dropped curved stay on the drive side. The drive side must be dropped & curved to clear the chainring, but running the non-drive side straight from the dropout to BB pivot reduces weight while significantly stiffening the rear triangle laterally. This design also helps improve tire clearance.
| FAULTLINE | A2 |
|---|---|

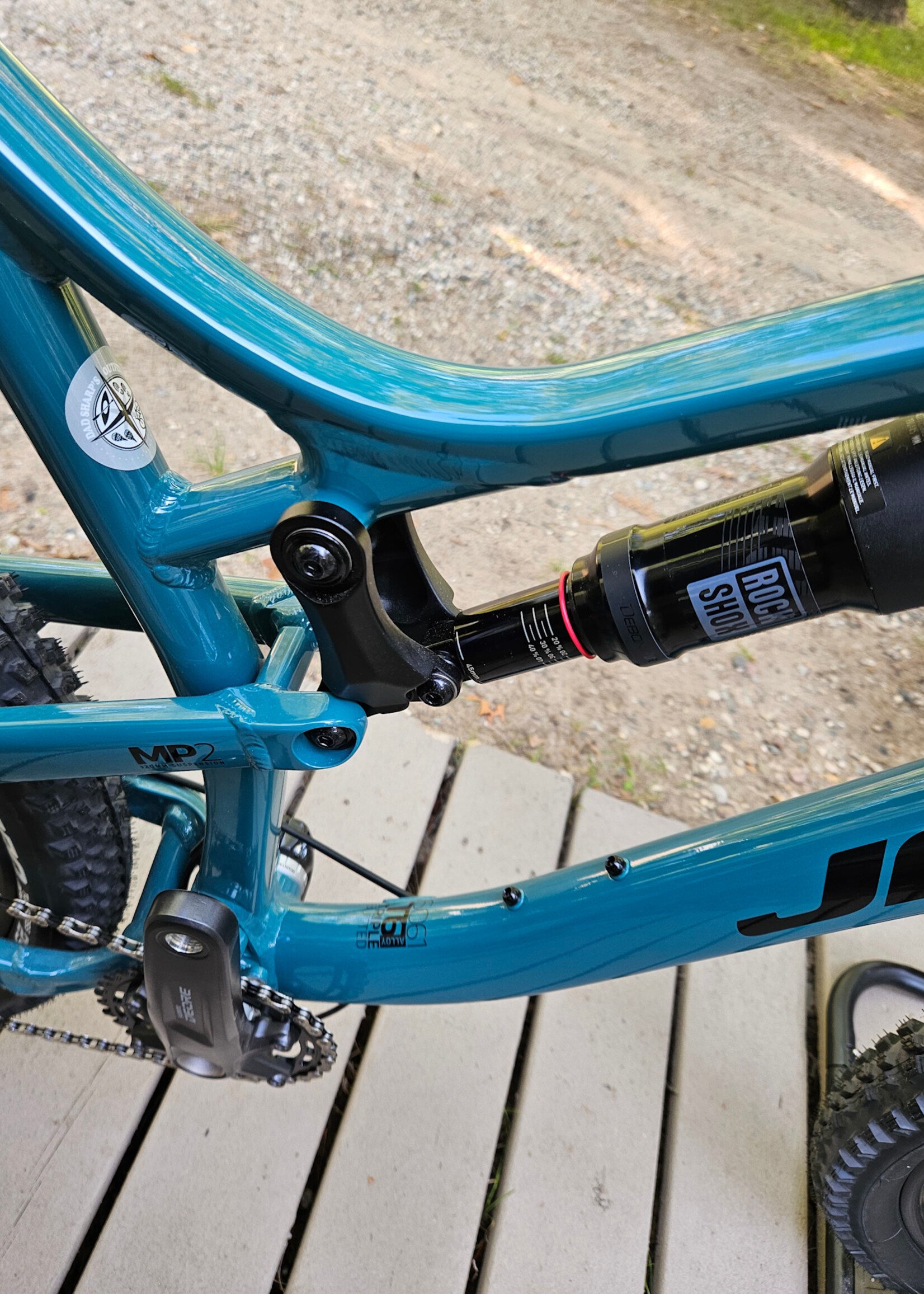

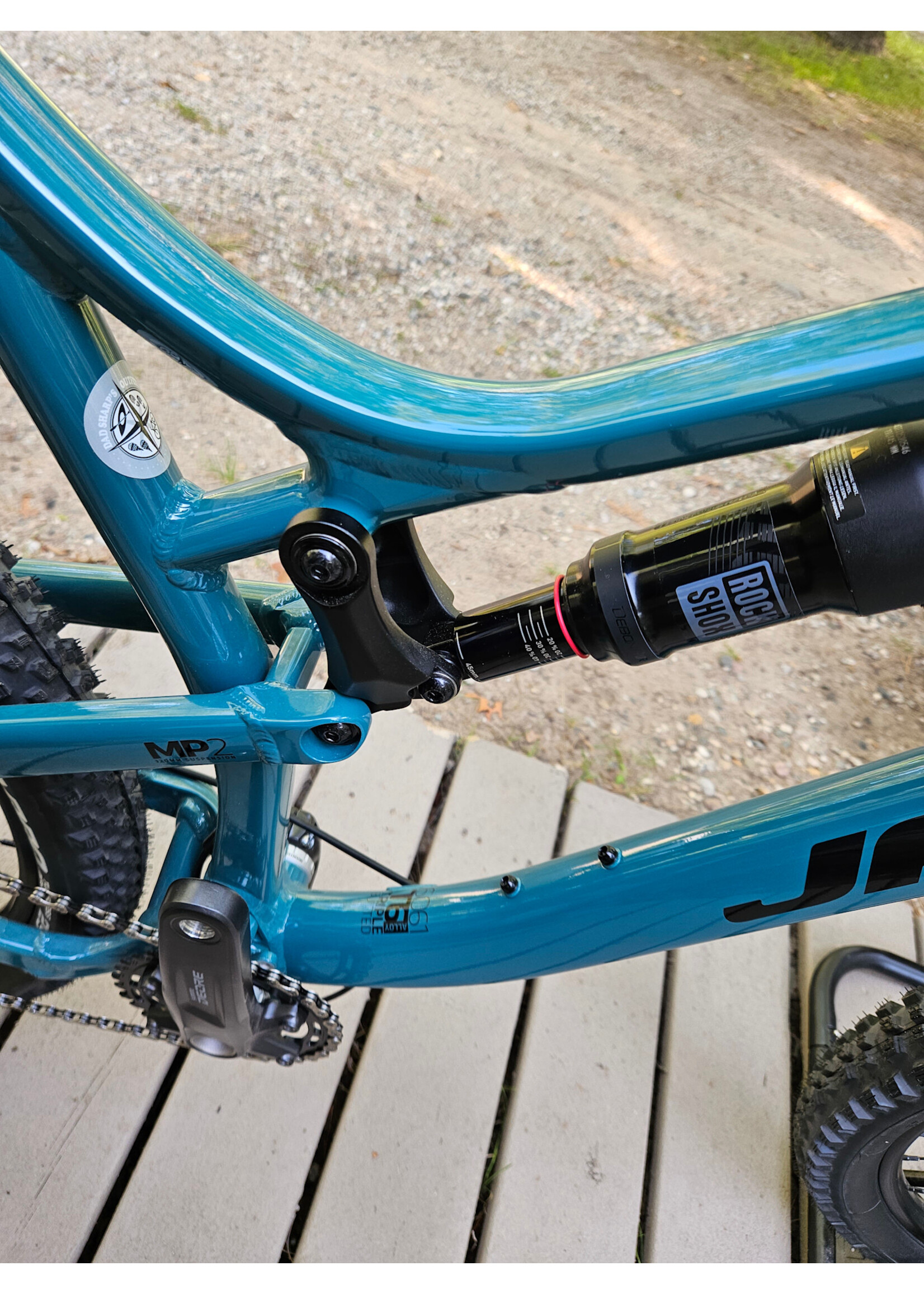

| Frame | Triple-butted 6061 alloy, 120mm travel mp2 suspension, 1.5 – 1 1/8” tapered head tube, asymmetrical chainstays w/12x148mm thru-axle dropout, internal dropper post routing, ISCG05 chainguide mount, Rock Shox Deluxe Select R air shock with rebound adjust, replaceable derailleur hanger |

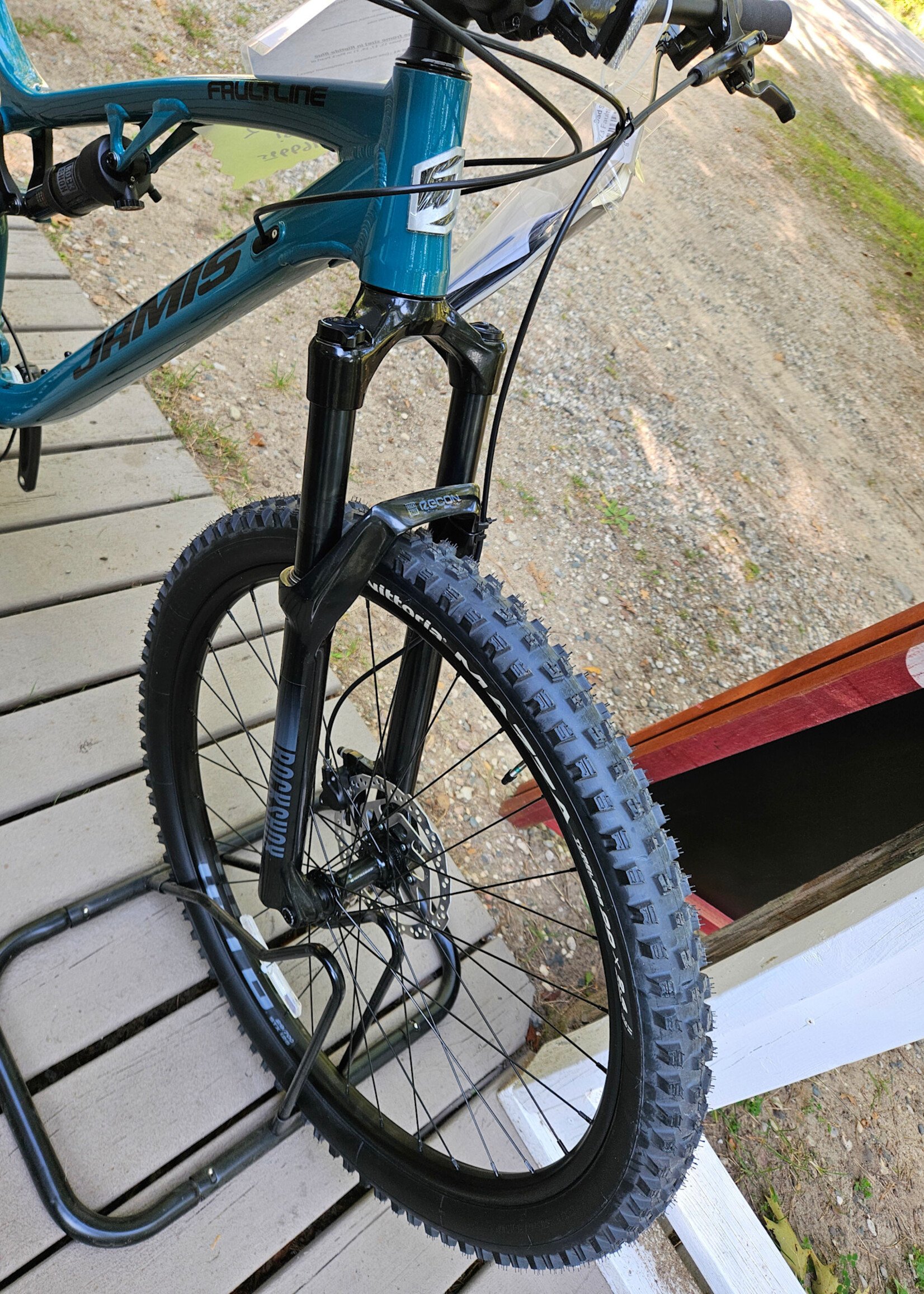

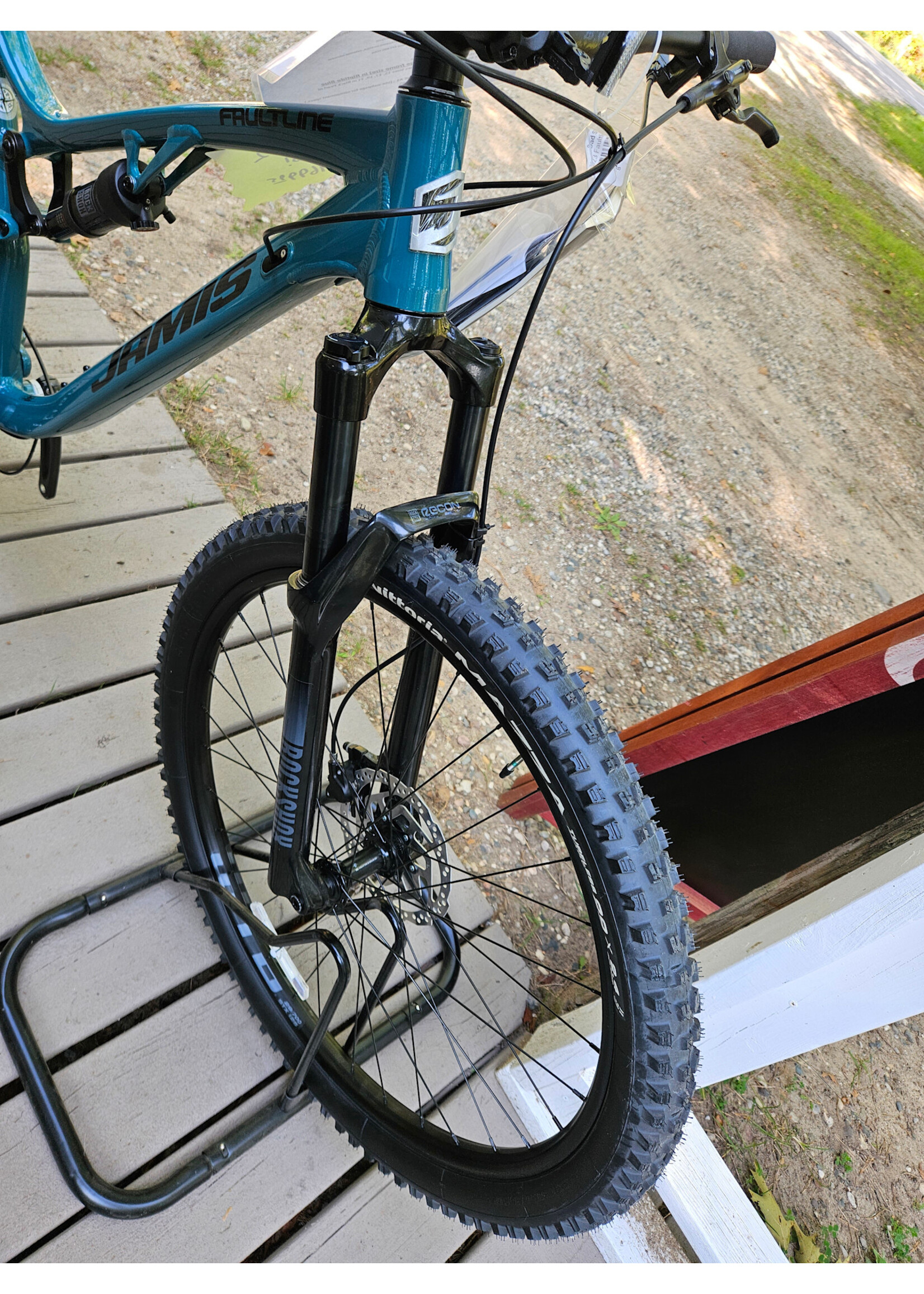

| Fork | Rock Shox Recon Silver RL 29”, Solo Air compression, lever actuated lockout, external rebound, 32mm steel stanchions, magnesium lowers, 15x110mm axle, 130mm travel, 51mm rake |
| Headset | FSA Orbit 1.5 Zero-Stack internal cup, 8mm cone spacer |
| Wheels | WTB STX i25 TCS 29” tubeless rims, 32H, Shimano MT400 15x110mm front & 12x148mm rear hubs, stainless spokes |
| Tires | WTB Vigilante 29 x 2.35” Front & Trail Boss 29 x 2.25” Rear, TCS Tubeless |
| Derailleurs | Shimano Deore Shadow Plus, 11-speed |
| Shift levers | Shimano Deore, 1×11-speed |
| Chain | KMC X11, 11-speed |

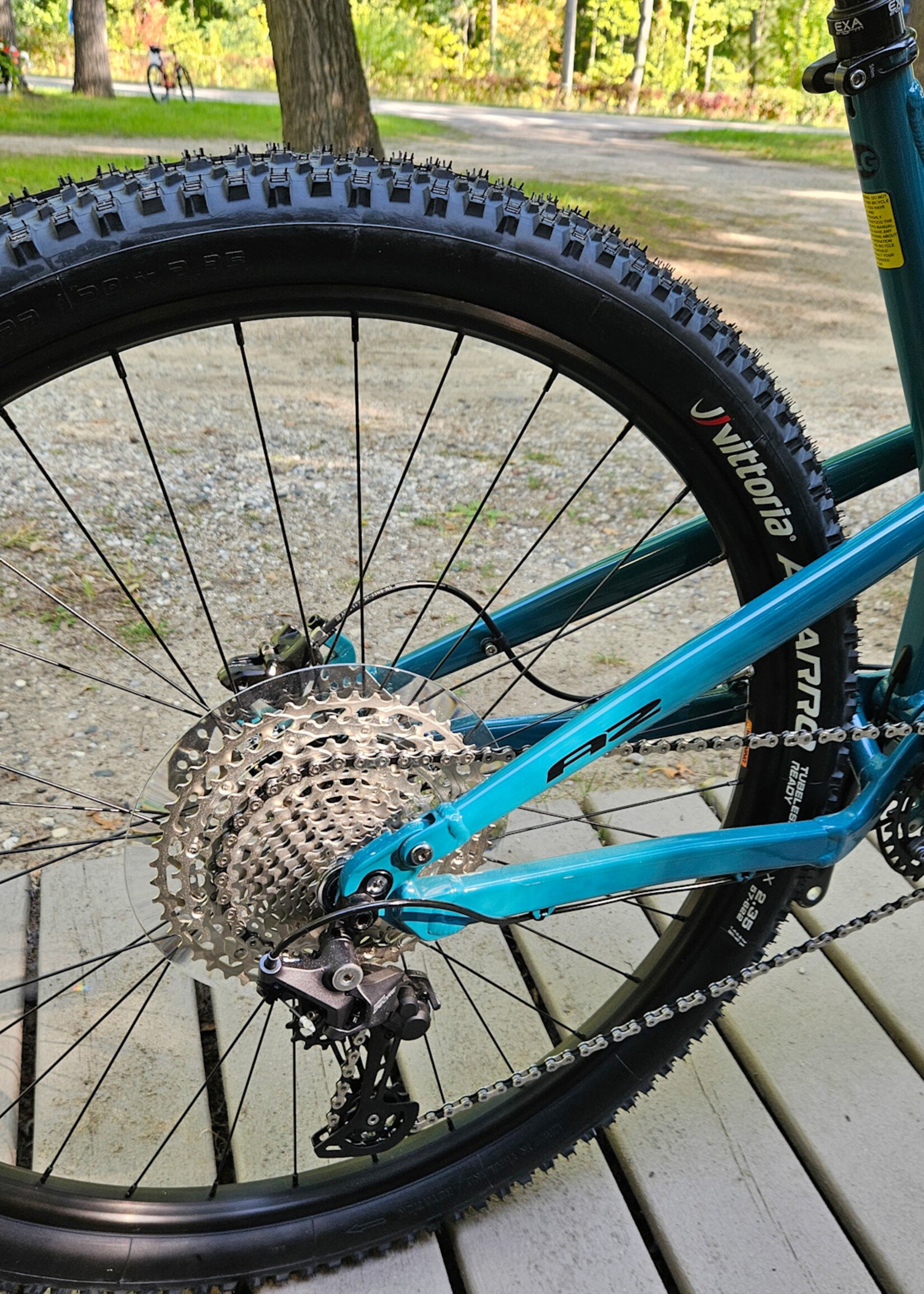

| Cassette | Shimano M5100, 11-speed, 11-51T |
| Crankset | Shimano Deore, 32T |
| BB Set | Shimano BSA |
| Pedals | N/A |
| Brakeset | Shimano MT200 hydraulic disc, 180mm front & 160mm rear RT10 rotors |
| Handlebar | Race Face Ride, 35 x 760mm |
| Stem | Race Face Ride, 50mm |
| Grips | Jamis Lock-On |
| Seat Post | Exaform 900i by KS Dropper, Westy remote |
| Saddle | WTB Volt |
| Sizes | S (15.5), M (17), L (19), XL (21) |
| Color | Flintstone, Riptide |
| Weight | 34 lbs |
